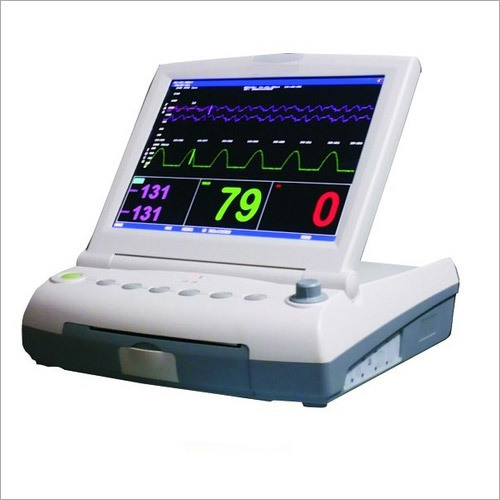

Fetal Monitor (12 inch)

About Fetal Monitor (12 inch)

Main Features:

Long life-span recorder with array of

high heat, print immediately or After storing

The world's advanced DSP technology

Double event marks

Three-in-one probe, reduce the line winding.

Code-operation, easy and convenient

A variety of alarming functions

Automatic fetal movements function

12 Hours Data & Waveform Storge and review

Twins monitoring Function Option.

Built in PC Network can be connected to the

central monitoring system. (Optional)

Technical Parameters

Product Name

Portable Fetal Monitor

Fetal Heart Ratill

Probe: 9 wafer, wide wave beam,Pulse working mode

high sensitivity

Ultrasound Intensity: <5mW/cm2

Recorder: Thermal Printer

Recorder Paper: Z-fold, thermal paper

Printing width: 112 m.m.

Working Frequency: 1.0--3.0(optional)

Measurement Scope: 30--240bpm

Largest Power of Voice Output: 1.5w

Toco Rang

0-100 (relative unit)

Display

FHR, TOCO, FM, Mark, Time, Freeze, Replay

Power

AC 220V, 50HZ

Power Consumption

<20W

Dimension

320 (Length) x 260(width) x 80 (height) mm

Net Weight

3.2 kg

Working Temperature

10-40 C, Relative Humidity 10-80%
