12 CHANNLE ECG WITH TOUCH SCREEN

Name: 12 CHANNLE ECG WITH TOUCH SCREEN
Brand: KORRIDA MEDICAL SYSTEMS
Price: 41999.0 INR
Availability: InStock

Price 41999.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

12 CHANNLE ECG WITH TOUCH SCREEN Specification

Color Code
WHITE

Treatment Type
Electrocardiography

Product Type
ECG MACHINE

Properties
Digital Touch, High Accuracy

Humidity Range
95% (non-condensing)

Application
Hospital, Clinical, Diagnostic Centre

Temperature Range
5C - 40C

Use
MEDICAL USE

Storage Capacity
Up to 1000 ECGs

Suitable For
Adult, Pediatric, Neonatal Patients

Material
ABS Plastic & Metal Components

Frequency
50/60 Hz

Dimension (L*W*H)
315 x 263 x 92 mm

Shape
Rectangular

Warranty
1 YEAR WARRENTY

Height
92 mm

Accuracy
0.5 mm

Weight
6 Kilograms (kg)

Phase
Single Phase

Power
150 VA

Automation Grade
Automatic

Function
12 Lead Simultaneous Acquisition

Display Type
Color TFT Touch Panel

Voltage
100-240 V

Display
7 inch Touch Screen

Power Source
AC Power / Rechargeable Battery

Patient Data Entry
Keyboard & Touch Input

Alarm
Audio & Visual

Analysis
Measurement and Interpretation

Lead Selection
Automatic & Manual

Printer
Built-in Thermal Printer

Report Formats
Standard/Customizable

Battery Backup
Minimum 3 hours

Frequency Response
0.05~150 Hz

Recording Paper
Roll/Sheet, 210 mm width

Data Transfer
USB, LAN, SD Card

QRS Detection
Yes

Channels
12 Channel Simultaneous Acquisition

Filter
EMG, AC, Drift, Low Pass

Sampling Rate
10000 Hz

Languages Supported
Multiple Languages

Sensitivity
2.5, 5, 10, 20, 40 mm/mV Selectable

12 CHANNLE ECG WITH TOUCH SCREEN Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
50 Pieces Per Day

Delivery Time
5 Days

About 12 CHANNLE ECG WITH TOUCH SCREEN

12 CHANNNLE ECG WITH TOUCH SCREEN

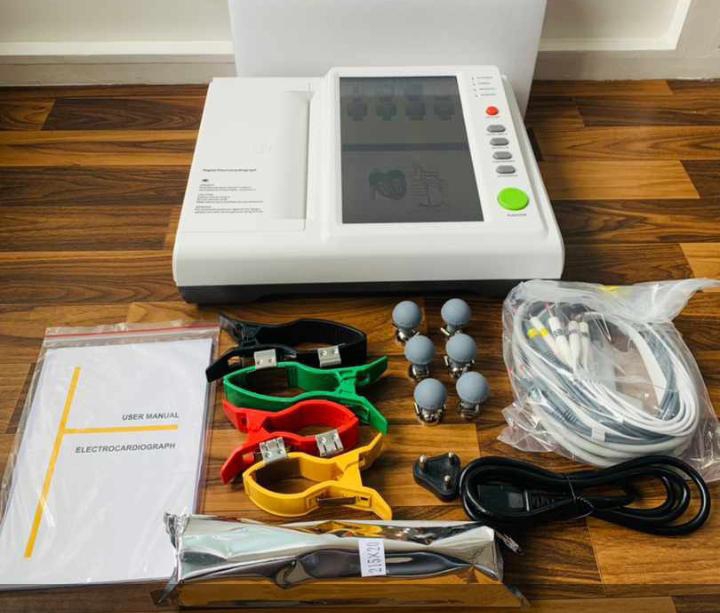

The Korrida KM-12E is a portable 12-channel ECG machine designed for accurate and real-time cardiac monitoring. It enables simultaneous acquisition of 12-lead ECG data,providing real-time recording and printing of ECG waveforms for efficient diagnosis.Equipped with a 10.2-inch color touch-screen display,the KM-12E supports both manual and automatic operation, ensuring ease of use for healthcare professionals.The machine features advanced ECG analysis software,offering auto-measurement,auto-interpretation, waveform playback, and storage of ECG data.With multiple printing formats, including standard 12-channel, 6-channel plus rhythm lead,and R-R histogram analysis, the Korrida KM-12E provides comprehensive heart rate assessment.It includes RS232 and USB interfaces for data transfer and remote management, with an optional wireless function for seamless PC communication.A built-in rechargeable lithium battery provides 2 to 3 hours of backup, making it ideal for clinical settings,hospitals, and portable healthcare applications.

Key Features:

12-Channel ECG Machine Simultaneous real-time ECG data acquisition, recording, and printing.

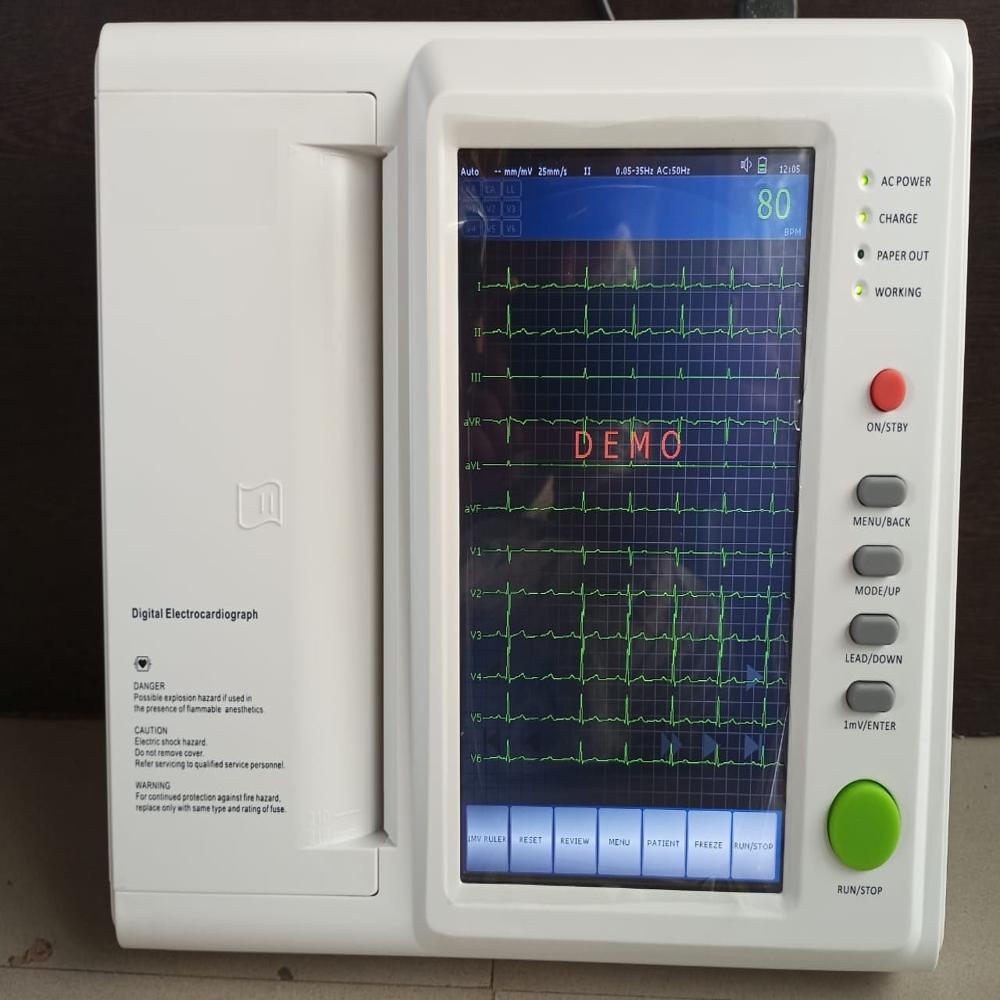

10.2-inch Color Touch Screen User-friendly operation with push-button and touch controls.
Multiple
Printing Formats Supports standard 12-channel, 3-channel plus 3
rhythm lead, 6-channel, R-R histogram, and trend graph analysis.
Automatic ECG Interpretation Built-in software ensures accurate analysis and measurement.

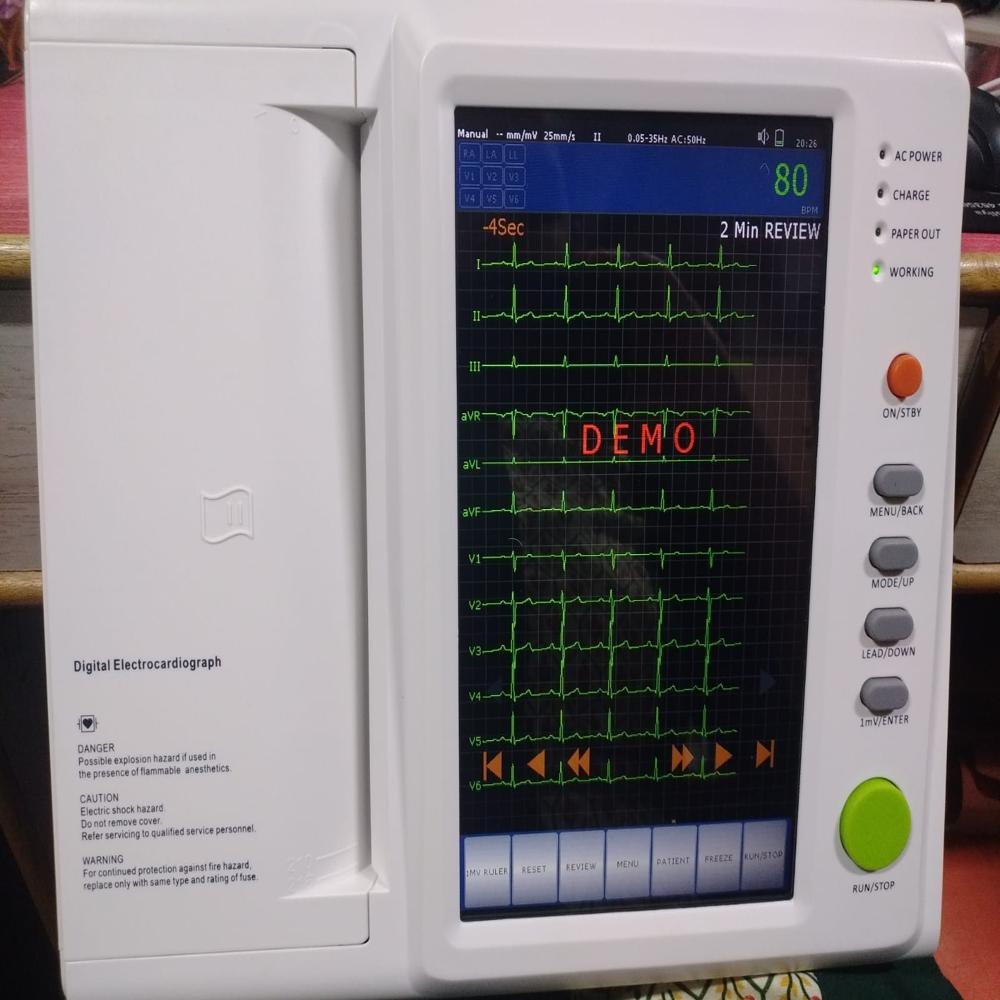

Waveform Playback & Storage Enables review and printing of historical ECG data.
Advanced Filters Features EMG and drift filters to minimize interference and noise.
Rechargeable Lithium Battery 2 to 3 hours of battery backup for uninterrupted operation.
Data Transfer & Storage RS232/USB support, SD card, and PC connectivity for seamless data management.
Portable & Compact Design Built-in carry handle for easy transport in medical settings.
Automatic Paper Detection & Sleep Mode Saves energy and extends LCD life.
